| 产品特性：耐磨高压管 | 是否进口：否 | 产地：河北衡水 |

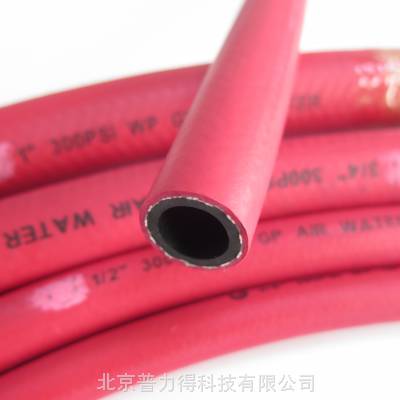

| 材质：耐天候合成橡胶 | 品名：空气管输水管 | 用途：输送空气与水管 |
| 厂家(产地)：衡水 | 品牌：PLD |
主要应用
● 输送空气、水、油、污水
● 用于工业、重型工程等
| YATAI PART.REF | HOSE SIZE | Reinforcemet | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | |||
| inch | mm | ply | mm | bar | psi | bar | psi | mm | kg/m | |
| ASD-20 | 1.1/4" | 31.8 | 2 | 43.4 | 10 | 150 | 30 | 450 | 192 | 0.95 |
| ASD-24 | 1.1/2" | 38.1 | 4 | 51 | 10 | 150 | 30 | 450 | 228 | 1.2 |
| ASD-28 | 1.3/4&＃39;&＃39; | 45 | 4 | 58 | 10 | 150 | 30 | 450 | 270 | 1.39 |
| ASD-32 | 2" | 50.8 | 4 | 64 | 10 | 150 | 30 | 450 | 306 | 1.55 |
| ASD-40 | 2.1/2" | 64 | 4 | 77.8 | 10 | 150 | 30 | 450 | 384 | 2.17 |
| ASD-48 | 3" | 76 | 4 | 89.8 | 10 | 150 | 30 | 450 | 456 | 2.54 |
| ASD-56 | 3.1/2"" | 89 | 4 | 102.8 | 10 | 150 | 30 | 450 | 534 | 2.94 |
| ASD-64 | 4" | 102 | 4 | 116.6 | 10 | 150 | 30 | 450 | 612 | 3.44 |
| ASD-80 | 5" | 127 | 4 | 142.4 | 10 | 150 | 30 | 450 | 762 | 4.56 |
| ASD-96 | 6" | 152 | 4 | 167.4 | 10 | 150 | 30 | 450 | 912 | 5.41 |
| ASD-128 | 8&＃39;&＃39; | 203 | 6 | 222.6 | 10 | 150 | 30 | 450 | 1218 | 9.17 |
| ASD-160 | 10&＃39;&＃39; | 254 | 6 | 273.6 | 10 | 150 | 30 | 450 | 1524 | 11.36 |
| ASD-192 | 12&＃39;&＃39; | 304 | 6 | 323.6 | 10 | 150 | 30 | 450 | 1824 | 13.62 |
| ASD-20 | 1.1/4" | 31.8 | 4 | 45 | 20 | 300 | 60 | 900 | 192 | 1.04 |
| ASD-24 | 1.1/2" | 38.1 | 4 | 51.8 | 20 | 300 | 60 | 900 | 228 | 1.38 |
| ASD-28 | 1.3/4&＃39;&＃39; | 45 | 4 | 58.8 | 20 | 300 | 60 | 900 | 270 | 1.59 |
| ASD-32 | 2" | 50.8 | 4 | 64.8 | 20 | 300 | 60 | 900 | 306 | 1.78 |
| ASD-40 | 2.1/2" | 64 | 4 | 78.6 | 20 | 300 | 60 | 900 | 384 | 2.25 |
| ASD-48 | 3" | 76 | 4 | 90.6 | 20 | 300 | 60 | 900 | 456 | 2.62 |
| ASD-56 | 3.1/2" | 89 | 6 | 106.4 | 20 | 300 | 60 | 900 | 534 | 3.65 |
| ASD-64 | 4" | 102 | 6 | 119.4 | 20 | 300 | 60 | 900 | 612 | 4.14 |
| ASD-80 | 5" | 127 | 6 | 145.6 | 20 | 300 | 60 | 900 | 762 | 5.57 |
| ASD-96 | 6" | 152 | 6 | 170.6 | 20 | 300 | 60 | 900 | 912 | 6.59 |
| ASD-128 | 8&＃39;&＃39; | 203 | 8 | 225.8 | 20 | 300 | 60 | 900 | 1218 | 10.74 |
| ASD-160 | 10&＃39;&＃39; | 254 | 8 | 278.4 | 20 | 300 | 60 | 900 | 1524 | 14.41 |
| ASD-192 | 12&＃39;&＃39; | 304 | 8 | 333.2 | 20 | 300 | 60 | 900 | 1824 | 20.66 |
● 连续工作温度范围: -4°F -176°F/-20°C-80°C
● 接头 :即插或法兰式
● 内胶层:NR+SBR
● 增强层：高强度聚酯帘子线
● 外胶层:NR+SBR
● 应用标准 :GB118692
