| 产品特性：耐负压 | 是否进口：否 | 产地：河北衡水 |

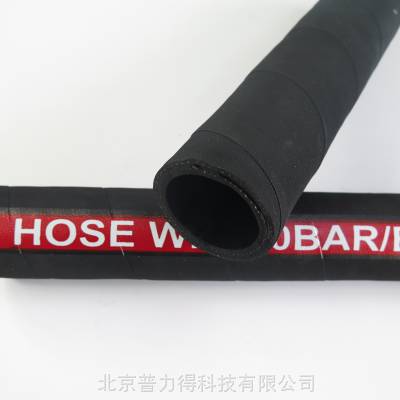

| 材质：耐天候合成橡胶 | 品名：吸排水管 | 用途：吸排水 |
| 厂家(产地)：衡水 | 品牌：PLD |
主要应用
● 输送工业冷水或热水，及无腐蚀性液体的抽吸和排放，耐负压0.9bar
● 吸排输送胶管广泛用于处理海水，工业废水，工业建筑业等
| YATAI PART.REF. | HOSE SIZE | REINFORCEMENT | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | |||
| inch | mm | ply | mm | bar | psi | bar | psi | mm | kg/m | |
| WSD-12 | 3/4&＃39;&＃39; | 19.1 | 2 | 30.4 | 10 | 150 | 30 | 450 | 114 | 0.67 |
| WSD-16 | 1" | 25.4 | 2 | 36.4 | 10 | 150 | 30 | 450 | 150 | 0.98 |
| WSD-20 | 1.1/4" | 31.8 | 2 | 44.8 | 10 | 150 | 30 | 450 | 192 | 1.27 |
| WSD-24 | 1.1/2" | 38.1 | 2 | 54.1 | 10 | 150 | 30 | 450 | 228 | 1.81 |
| WSD-28 | 1.3/4&＃39;&＃39; | 45 | 2 | 58.4 | 10 | 150 | 30 | 450 | 270 | 1.73 |
| WSD-32 | 2" | 50.8 | 2 | 64.4 | 10 | 150 | 30 | 450 | 306 | 2.31 |
| WSD-40 | 2.1/2" | 64 | 2 | 78.4 | 10 | 150 | 30 | 450 | 384 | 3.00 |
| WSD-48 | 3" | 76 | 2 | 90.8 | 10 | 150 | 30 | 450 | 456 | 4.02 |
| WSD-56 | 3.1/2"" | 89 | 4 | 106.2 | 10 | 150 | 30 | 450 | 534 | 5.46 |
| WSD-64 | 4" | 102 | 4 | 119.6 | 10 | 150 | 30 | 450 | 612 | 6.19 |
● 温度范围: -4°F -176°F/-20°C-80°C
● 接头：即插式或法兰式
● 内胶层: NR,SBR
● 增强层：高强度聚酯帘子线 + 螺旋钢丝
● 外胶层: NR,SBR
● 应用标准： HG/T3035-1999
