| 产品特性：高压高温 | 是否进口：否 | 产地：河北衡水 |
| 材质：丁腈橡胶 | 公称外径：64-140mm | 壁厚：2-10mm |

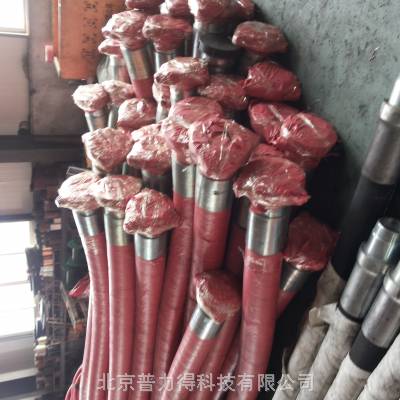

| 品名：钻探胶管 | 用途：钻井泥浆 | 厂家(产地)：衡水 |
| 长度：20/30/40/50/60/100米/卷m | 品牌：PLD |
主要应用
● 用于石油钻探绕组巩固,工作和石油地质勘探、矿业小钻机和水利采煤、输送泥浆及常温水等流体介质
| YATAI PART.REF. | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | |||
| inch | mm | mm | mm | bar | psi | bar | psi | mm | kg/m | |
| ZT4SP-32 | 2" | 50.8 | 64.4 | 69 | 350 | 5000 | 875 | 12500 | 900 | 5.70 |
| ZT4SP-40 | 2.1/2" | 63.5 | 79.0 | 84 | 350 | 5000 | 875 | 12500 | 1100 | 6.70 |
| ZT4SP-48 | 3" | 76.0 | 102.0 | 107.0 | 350 | 5000 | 875 | 12500 | 1200 | 16.50 |
| ZT4SP-56 | 3.1/2" | 90.0 | 114.0 | 120.0 | 350 | 5000 | 875 | 12500 | 1300 | 18.40 |
| ZT4SP-64 | 4" | 102.0 | 130.0 | 139 | 350 | 5000 | 875 | 12500 | 1400 | 20.30 |
| ZT4SP-32 | 2" | 50.8 | 68.0 | 72.0 | 700 | 10000 | 1750 | 25000 | 1000 | 6.20 |
| ZT4SP-40 | 2.1/2" | 63.5 | 84.0 | 88 | 700 | 10000 | 1750 | 25000 | 1200 | 7.40 |
| ZT4SP-48 | 3" | 76.0 | 112.0 | 117 | 700 | 10000 | 1750 | 25000 | 1300 | 23.70 |
| ZT4SP-56 | 3.1/2" | 90.0 | 122.0 | 129 | 700 | 10000 | 1750 | 25000 | 1400 | 26.60 |
| ZT4SP-64 | 4" | 102.0 | 140.0 | 146.0 | 700 | 10000 | 1750 | 25000 | 1600 | 29.80 |
● 连续工作温度范围：-40°F --212°F/-40°C-100°C
● 接头: SHF-扣压式
● 内胶层： 耐油合成橡胶
● 增强层：四层或六层高抗拉钢丝缠绕
● 外胶层： 耐磨耐天候合成橡胶
