| 产品特性：耐高温 | 是否进口：否 | 产地：河北衡水 |

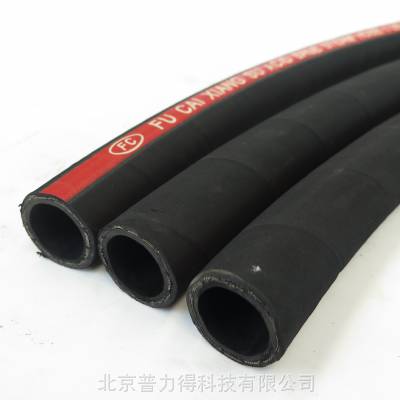

| 材质：三元乙丙橡胶 | 品名：蒸汽管 | 用途：蒸汽热水 |
| 厂家(产地)：衡水 | 品牌：PLD |
主要应用
● 高压蒸汽，热水，热空气
● 适用于连续输送高温160℃以下或间歇性输送温度220℃以下的饱和蒸汽或热水
| YATAI PART.REF. | HOSE SIZE | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | |||
| inch | mm | mm | bar | psi | bar | psi | mm | kg/m | |
| SH1SN-3 | 3/16“ | 4.8 | 11.5 | 10 | 150 | 40 | 570 | 89 | 0.20 |
| SH1SN-4 | 1/4” | 6.4 | 13.2 | 10 | 150 | 40 | 570 | 100 | 0.22 |
| SH1SN-5 | 5/16“ | 7.9 | 14.8 | 10 | 150 | 40 | 570 | 114 | 0.27 |
| SH1SN-6 | 3/8“ | 9.7 | 17.1 | 10 | 150 | 40 | 570 | 127 | 0.34 |
| SH1SN-8 | 1/2“ | 12.7 | 20.1 | 10 | 150 | 40 | 570 | 178 | 0.41 |
| SH1SN-10 | 5/8“ | 16 | 23.3 | 10 | 150 | 40 | 570 | 200 | 0.51 |
| SH1SN-12 | 3/4“ | 19.1 | 27.3 | 10 | 150 | 40 | 570 | 240 | 0.62 |
| SH1SN-16 | 1“ | 25.4 | 35.1 | 10 | 150 | 40 | 570 | 300 | 0.93 |
| SH1SN-20 | 1.1/4“ | 31.8 | 43.3 | 10 | 150 | 40 | 570 | 419 | 1.25 |
| SH1SN-24 | 1.1/2“ | 38.1 | 49.7 | 10 | 150 | 40 | 570 | 500 | 1.66 |
| SH1SN-38 | 2.3/8" | 60 | 71.5 | 10 | 150 | 40 | 570 | 650 | 2.25 |
● 温度范围： -45°F-320°F/-45°C-160°C
● 接头：SHF-扣压式
● 内胶层：EPDM
● 增强层：一层或两层高抗拉钢丝编织
● 外胶层：EPDM
● 应用标准：EN 8531SN/2SN；SAE 100 R1/R2AT；*** 1436
